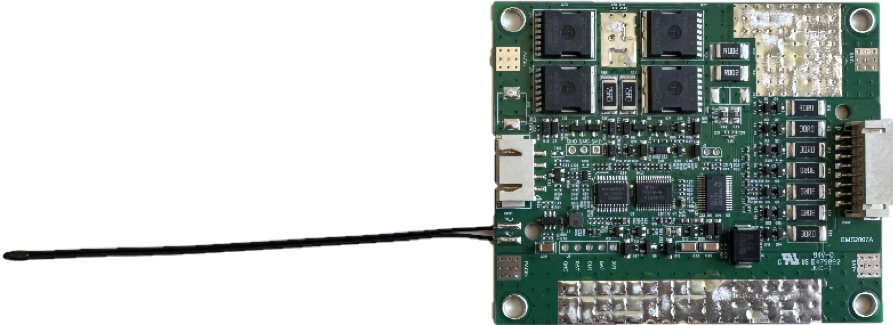

The BMS2007A is a Battery Cell Management and Protection Board designed for 6 to 7-series (6S-7S) lithium battery packs. It is suitable for electric bicycles and other applications using 7S battery packs. The protection parameters can be configured according to the specific chemistry characteristics of different battery types, including Lithium-ion (Li-ion), Lithium Polymer (Li-Po), and Lithium Iron Phosphate (LiFePO₄) batteries.
The BMS2007A provides an RS485 communication interface, allowing protection parameters such as overcharge, over-discharge, and overcurrent protection to be configured according to the requirements of different battery packs. The board supports a continuous discharge current of up to 30 A.
Through the communication interface, the system can monitor the battery State of Charge (SOC), State of Health (SOH), as well as battery pack voltage, current, and temperature. This information can be used for system monitoring and battery power management.
